With PA International, you have access to most advanced FPC facility in China. Start developing and prototyping in our R&D facility or manufacture if your design is fully developed. It’s not just our design and prototype-to-production manufacturing capacity that makes us different; our technical, engineering, procurement and customer services gives us a competitive advantage. Our R&D team developed custom solutions for most demanding applications including TESLA cars in USA and German auto makes. We are not just preferred but the only supplier to some companies.

Do you need inventory schedualing for your flex or rigid-flex PCBs? Get pull and push inventory that meets your specific needs. Order in high volume, but let us manage your inventories with Just in Time deliveries.

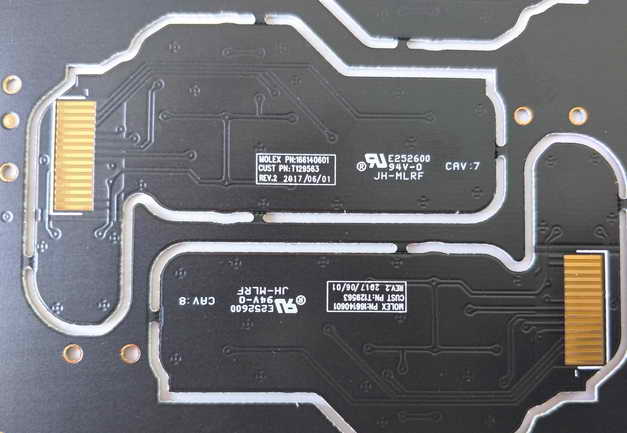

We also provide flex and rigid-flex PCB assembly services that reduces your vendor count, production delays, and quality issues. From single component to complicated box builds, we can do your component sourcing, assembly and testing.

Our capabilities.



Product Standard Flex Circuits Standard Rigid-flex Circuits High Density Interconnect (HDI) Flex Circuits
Standard Panel Size 250mm x 400 mm 100mm x 100mm 250mm x 400mm
Line Width and Spacing .003″ (0.07mm) .003″ (0.07mm) .003″ (0.07mm)
Copper Thickness 1/2 oz. and higher 1/4 to 1/2 oz. 1/2 oz. and higher
Layer Count 10 Up to 4 Up to 18
Via/ Drill Size
Minimum Drill (Mechanical) Hole Diameter .008″ (0.2 mm) .006″ (0.15 mm) .008″ (0.2 mm)
Minimum Via (Laser) Size 5 mil (0.15 mm) 1 mil (0.025 mm) 6 mil (0.15 mm)
Minimum Micro Via (Laser) Size 3 mil (0.07 mm) 1 mil (0.025 mm) 3 mil (0.07 mm)
Stiffener Material Polyimide / FR4 / Metal Polyimide / FR4 / Metal Polyimide / FR4
Shielding Material Copper / Silver Ink / Tatsuta / Carbon Copper / Silver Ink / Tatsuta / Carbon Copper / Silver Ink / Tatsuta / Carbon
Tooling Tolerance 2 mil (0.05 mm) 1 mil (0.025 mm) 2 mil (0.05 mm)
Zif Tolerance 2 mil (0.05 mm) 1 mil (0.025 mm) 2 mil (0.05 mm)
Solder Mask
Solder Mask Bridge Between Dam 5 mil (0.13 mm) 4 mil (0.11 mm) 5 mil (0.13 mm)
Solder Mask Registration Tolerance 4 mil (0.11 mm) 4 mil (0.11 mm) 5 mil (0.13 mm)
Coverlay
Coverlay Registration 8 mil (0.20 mm) 5 mil (0.13 mm) 8 mil (0.20 mm)
PIC Registration 7 mil (0.18 mm) 4 mil (0.11 mm) 7 mil (0.18 mm)
Solder Mask Registration 5 mil (0.13 mm) 4 mil (0.11 mm) 5 mil (0.13 mm)
Stiffener
PI Stiffener
Stiffener Registration 10 mil (0.25 mm) 10 mil (0.25 mm) 10 mil (0.25 mm)
Thickness Tolerance 10% 10% 10%
FR4 Stiffener
Stiffener Registration 10 mil (0.25 mm) 10 mil (0.25 mm) Layer to Layer
Thickness Registration 10% 10% 5 mil (0.13 mm)
Legend
Minimum Height 35 mil (0.89 mm) 25 mil (0.64 mm) 35 mil (0.89 mm)
Minimum Width 8 mil (0.20 mm) 6 mil (0.15 mm) 8 mil (0.20 mm)
Minimum Space 8 mil (0.20 mm) 6 mil (0.15 mm) 8 mil (0.20 mm)
Registration +/- 5 mil (0.13 mm) +/- 5 mil (0.13 mm) +/- 5 mil (0.13 mm)
Impedance +/- 10% +/- 10% +/- 10%
SRD (Steel Rule Die)
Outline Tolerance 5 mil (0.13 mm) 2 mil (0.051 mm) 5 mil (0.13 mm)
Minimum Radius 5 mil (0.13 mm) 4 mil (0.11 mm) 5 mil (0.13 mm)
Inside Radius 20 mil (0.51 mm) 10 mil (0.25 mm) 31 mil (0.79 mm)
Punch Minimum Hole Size 40 mil (1.02 mm) 31.5 mil (0.80 mm) N/A
Tolerance of Punch Hole Size +/- 2 mil (0.051 mm) +/- 1 mil (0.025 mm) N/A
Slot Width 20 mil (0.51 mm) 15 mil (0.38 mm) 31 mil (0.79 mm)
Tolerance of Hole to Outline +/- 3 mil (0.07 mm) +/- 2 mil (0.051 mm) +/- 4 mil (0.11 mm)
Tolerance of Hole Edge to Outline +/- 4 mil (0.11 mm) +/- 3 mil (0.07 mm) +/- 5 mil (0.13 mm)
Minimum of Trace to Outline 8 mil (0.20 mm) 5 mil (0.13 mm) 10 mil (0.25 mm)

Sending your RFQ

Fill in the form below and our engineer will contact you within 24 hours.
We can help you with any Flex PCB assembly, engineering, design and manufacturing questions. Been a China based manufacturer an important part of our business is short runs and small quantities of Flex PCB’s and assemblies.
